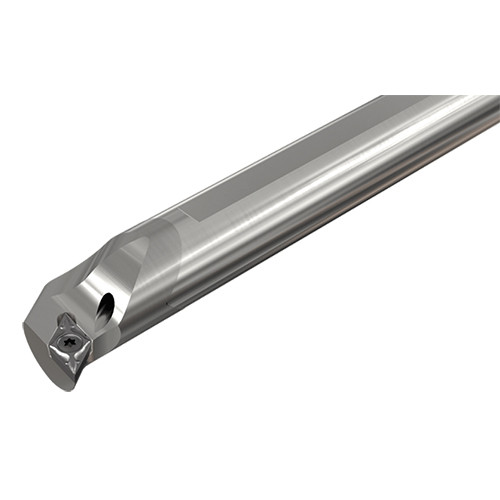

A20R SDUCR-11
Screw lock boring bars carrying 55° rhombic inserts with 7° clearance.
Price: Log in For Price
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 200 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 50 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 14.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DC.. 11T3 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Screw lock boring bars carrying 55° rhombic inserts with 7° clearance. | Country of Origin | Israel |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Package Weight
0.937
