AVC-D25-SVQCR-11

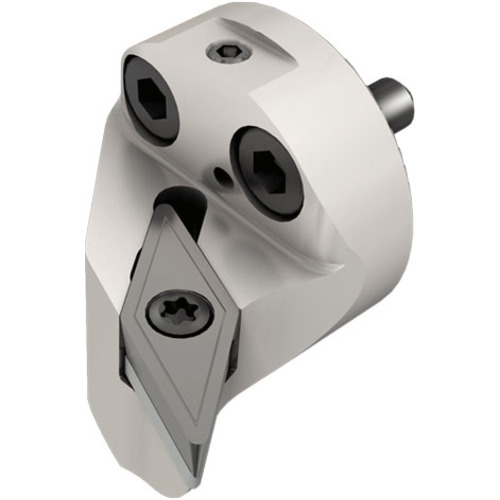

Interchangeable boring heads carrying 35° rhombic inserts with 7° clearance and 107.5 approach anglele.
Price: Log in For Price
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 1.181″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 1.181″ | Application | | Int. 35° Diamond 107.5°Approa | |
| Functional Width (WF) | 0.669″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Master Insert Identification (MIID) | VCMT 221-F3P | Rake Angle Radial (GAMF) | -5 Degrees |
| Minimum Bore Diameter (DMIN) | 1.26″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Interchangeable boring heads carrying 35° rhombic inserts with 7° clearance and 107.5 approach anglele. | Country of Origin | Israel |
Shipping Info
Package Weight
0.174
