HSK FM63 ER40X80

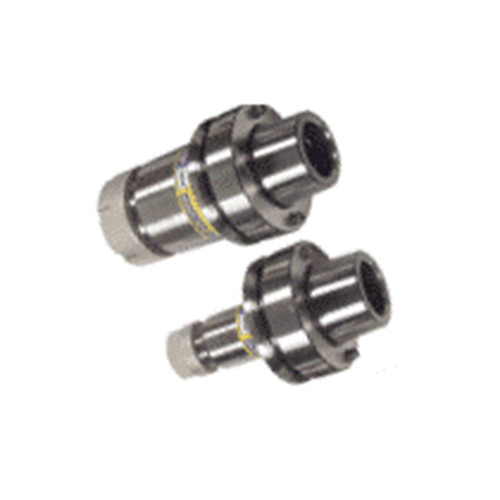

ER collet chuck with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum.
Price: Log in For Price

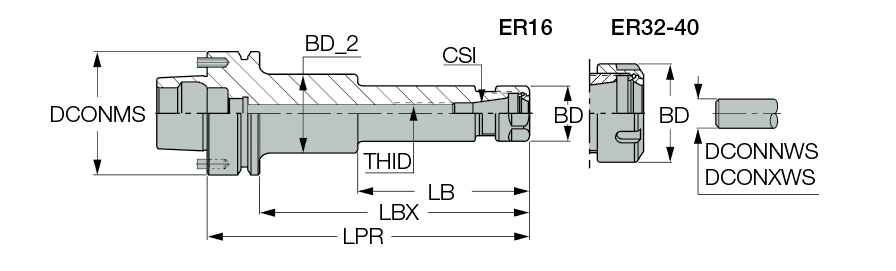

| Shank Size (SS) | 63 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Body Diameter (BD) | 2.48″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Protruding Length (LPR) | 3.15″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Tool Type | HSK | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | ER collet chuck with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum. | Country of Origin | Israel |
| Remarks | Used on Makino machine models MAG The anti-slip pins can be removed, turning the toolholders into a standard HSK F63 type A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) |
Shipping Info
Package Weight
2.767
