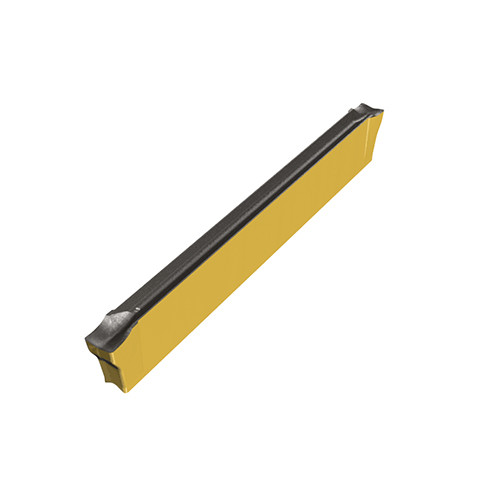

DGN 2002J-XL IC830
Parting & grooving, double-sided insert with a J-type chipformer. First choice for soft materials and stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake. Low-to-medium feeds.
Price: Log in For Price

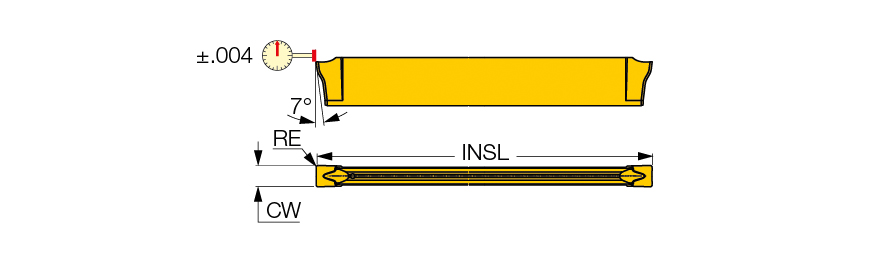

| Cutting Width (CW) | 0.081″ | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Overall Length (OAL) | 1.26″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 1.181″ | Chip Breaker Type | J |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | AlTiN+TiN | Angle | 12 Degrees |
| Grade | IC830 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
Product Features
| Family Description | Parting & grooving, double-sided insert with a J-type chipformer. First choice for soft materials and stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake. Low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
