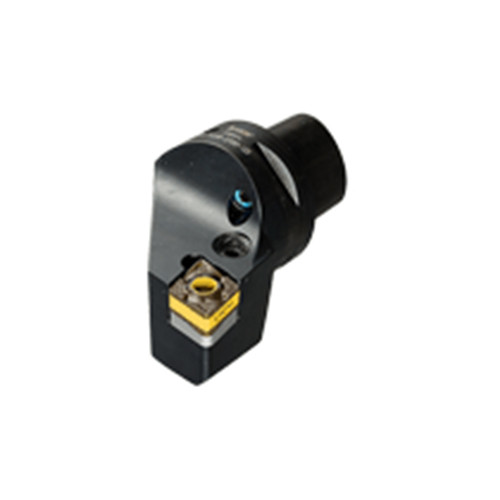

C4 PCLNR-27050-12X
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel
Price: Log in For Price

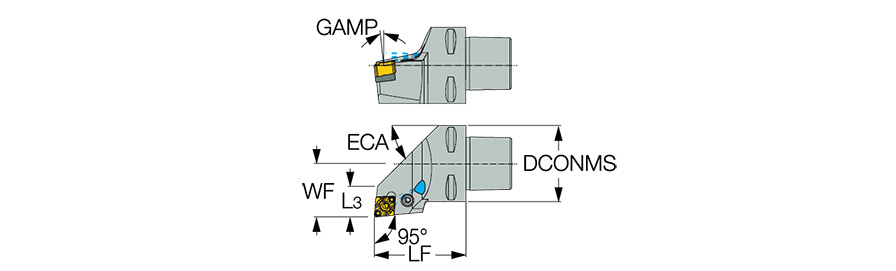

| Overall Length (OAL) | 2.913″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 1.968″ | Body Material | Steel |
| Functional Width (WF) | 1.063″ | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | End Chamfer Angle (ECA) | 40 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CNMG 430-FFG | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 1.968″ |
| Application | | Ext. 80° Diamond 95° Approach | |
Product Features

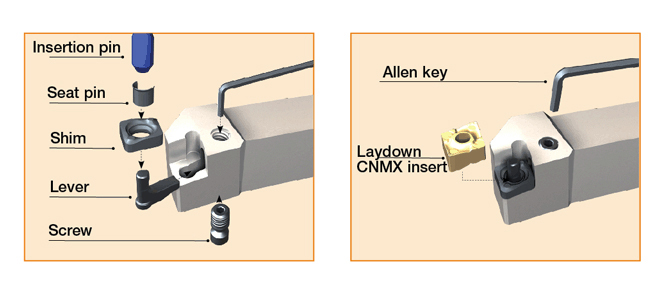

| Family Description | Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying CNMX or CNMG negative 80° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.992
