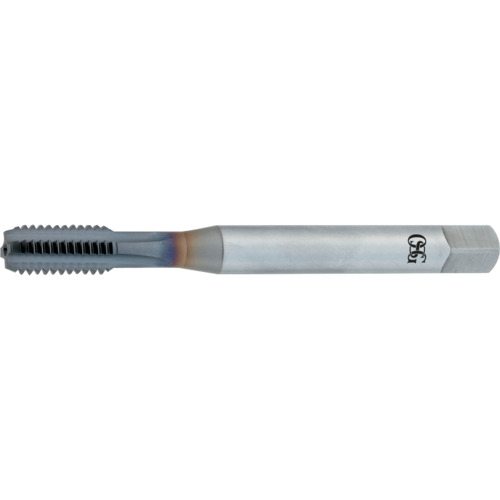

M8 1.0 Dia. - D5-5 FL - x PM-TiCN - Modified Bottoming - Straight Flute Tap
Price: Log in For Price
| Thread Diameter Size (TDZ) | M8 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 2-23/32″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ | Style | Modified Bottoming |
| Usable Length (LU) | 29 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Series/List # | 11051 |
| Applicable Material | | Steel | Hard Materials | | Thread Size | M8 × 1 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
3.60000
Package Width
.45000
Package Height
.45000
Package Weight
.0450
